Prasy mechaniczne
Prasy mechaniczne - prasy mimośrodowe, do zastosowań obróbce plastycznej metali, w tym gięcie, tłoczenie, wykrawanie, przebijanie, zakuwanie i wiele innych.
Prasy wykonywane są w przedziale 15 - 600 ton nacisku.
Możliwość wykonania pras specjalnych o parametrach technicznych i wydajności dostosowanych do potrzeb Klienta.
Prasa mimośrodowa typ-C
TECHNICAL DATA:
- Capacity range 15 - 300 tons,
- Steel construction body,
- Stress and welded parts will be relieved by vibration.
- Parallelism and stiffness tolerance between tables is in accordance with ISO and DIN norms.
- Pneumatic clutch and brake combination - OMPI-Italy
- Parts such as ram, connecting rod, worm mouth, steel casting, GS52
- High-strength solid crankshaft - 4140
- Connecting rod will be bronze inside, (Zr14)
- Spare table,
- Mechanical insured,
- Ratchet apparatus table-coach adjustment
- Manual central lubrication,
- Pneumatic pedal with latch and double control with time adjustment,
- Electric counter,
- PLC application and line display - DELTA
- Electrical switchgear materials SIEMENS-SCHNEIDER
- CE application
- Finger protected beam barriers, -SICK, LEUZE, KEYENCE
- Security PLC (Controls all electrical system, valve, double and pedal) - PILZ
- Double coil safety valve - GPA
- Locked position switch and panel,
- Security wedge,
- There will be protective enclosures within the scope of -CE.
-- PO WIĘCEJ INFORMACJI I OFERTĘ ZAPRASZAMY DO KONTAKTU --

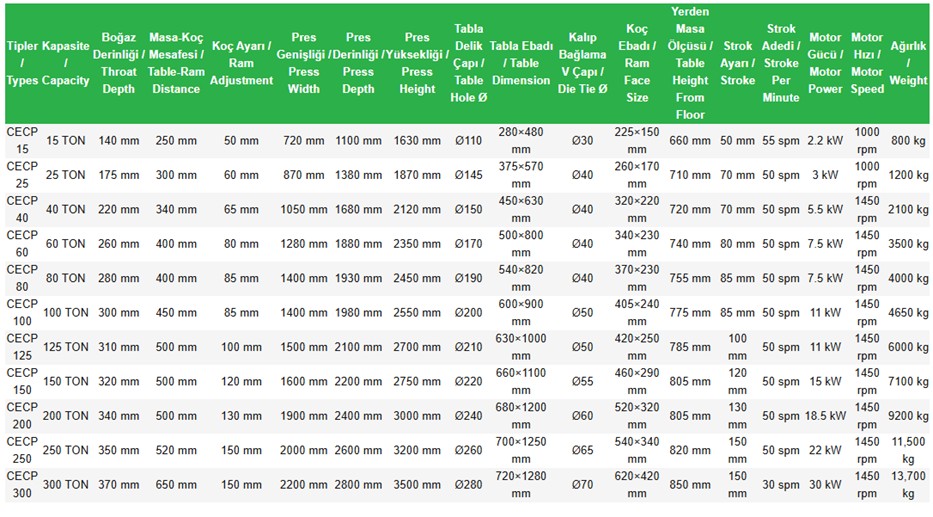

Specyfikacja techniczna

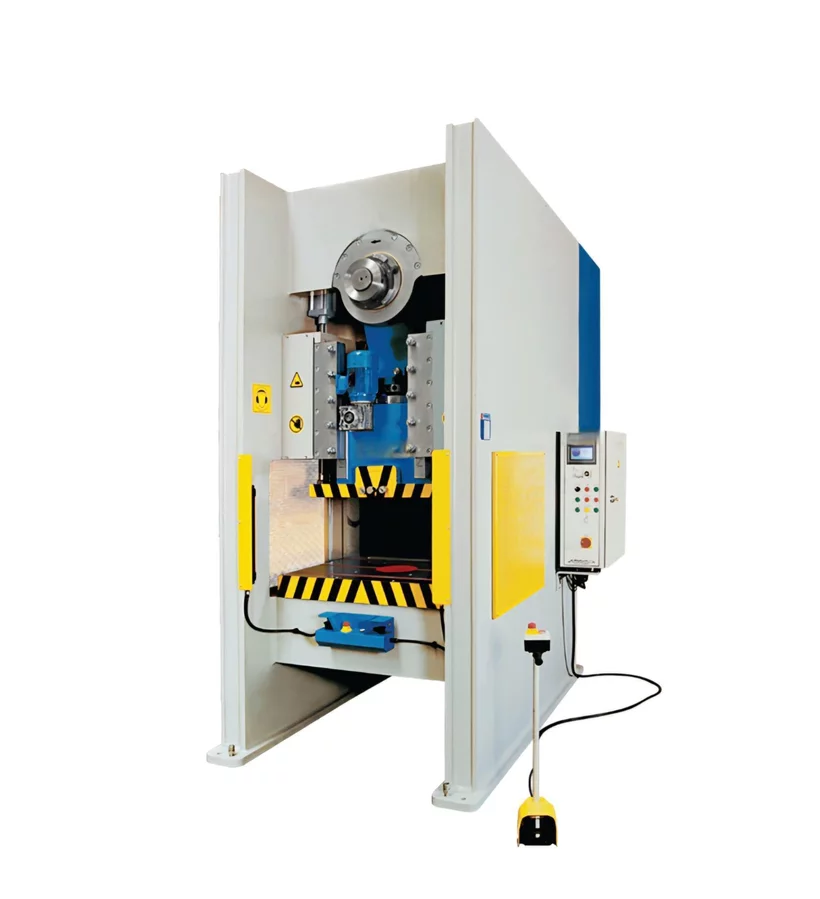

Prasa mimośrodowa typ-D
TECHNICAL DATA:
- Capacity range 80 - 300 tons,
- Steel construction body,
- Stress and welded parts relieved by vibration,
- Parallelism and stiffness tolerance between tables is in accordance with ISO and DIN norms,
- Pneumatic clutch and brake combination - OMPI-Italy,
- Parts such as ram, connecting rod, worm mouth, steel casting, GS52,
- High-strength solid crankshaft - 4140,
- Connecting rod will be bronze inside, (Zr14),
- Spare table,
- Hydraulic insured,
- Ratchet apparatus table-coach adjustment,
- Automatic central lubrication,
- Pneumatic pedal with latch and double control with time adjustment,
- Electric counter,
- PLC application and line display - DELTA,
- Electrical switchgear materials SIEMENS-SCHNEIDER,
- CE application,
- Finger protected beam barriers, -SICK, LEUZE, KEYENCE,
- Security PLC (Controls all electrical system, valve, double and pedal) - PILZ,
- Double coil safety valve - GPA,
- Locked position switch and panel,
- Security wedge,
- There will be protective enclosures within the scope of -CE.
-- PO WIĘCEJ INFORMACJI I OFERTĘ ZAPRASZAMY DO KONTAKTU --

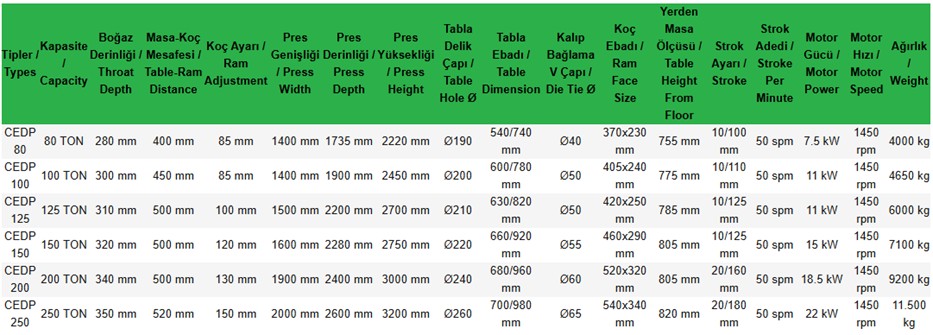

Specyfikacja techniczna

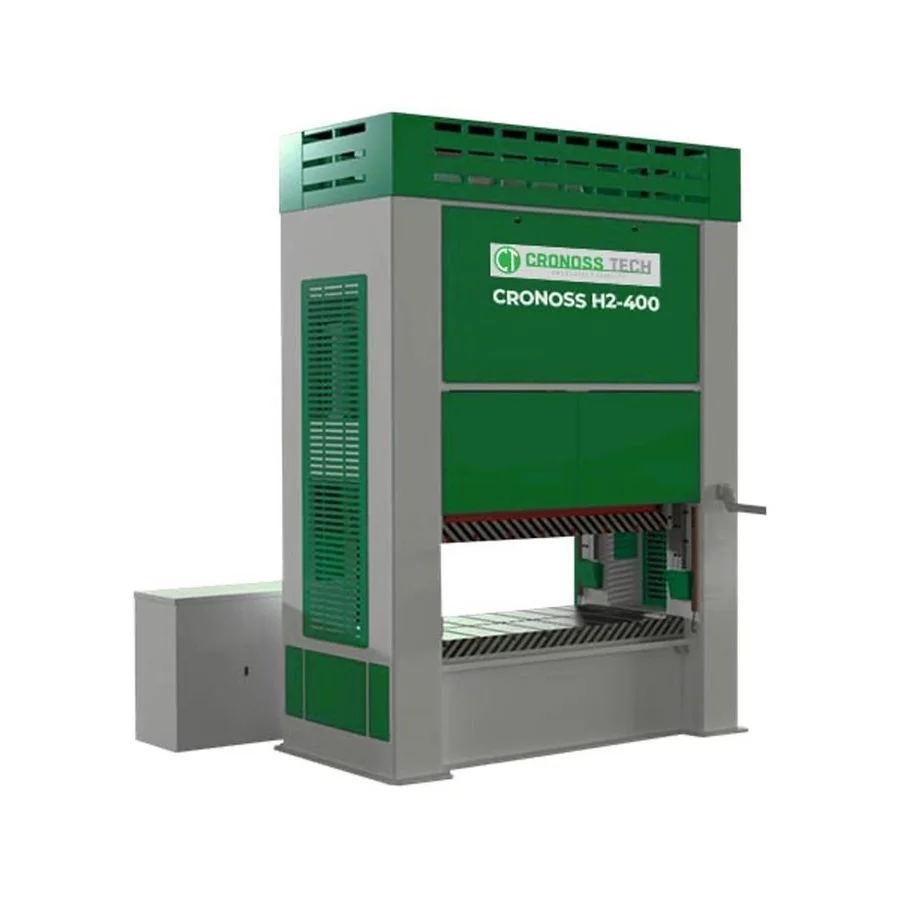

Prasa mimośrodowa typ-H
TECHNICAL DATA:
- Capacity range 125 - 600 tons,
- Steel construction body
- Pneumatic clutch brake
- T-channel additional additional plate
- 8 Bearing rams
- Adjustable stroke on single connecting rod
- Balancer piston on ram
- Fully automatic fine lubrication system
- PLC control system
- Piano type control panel
- Touch LCD screen
- Motor reverse movement
- Overload hydraulic fuse
- Motorized ram adjustment mechanism
- Photocell protection curtain
- Gear group in closed oil chamber
- Double coil safety valve
- Compliance with CE Standards
-- PO WIĘCEJ INFORMACJI I OFERTĘ ZAPRASZAMY DO KONTAKTU --

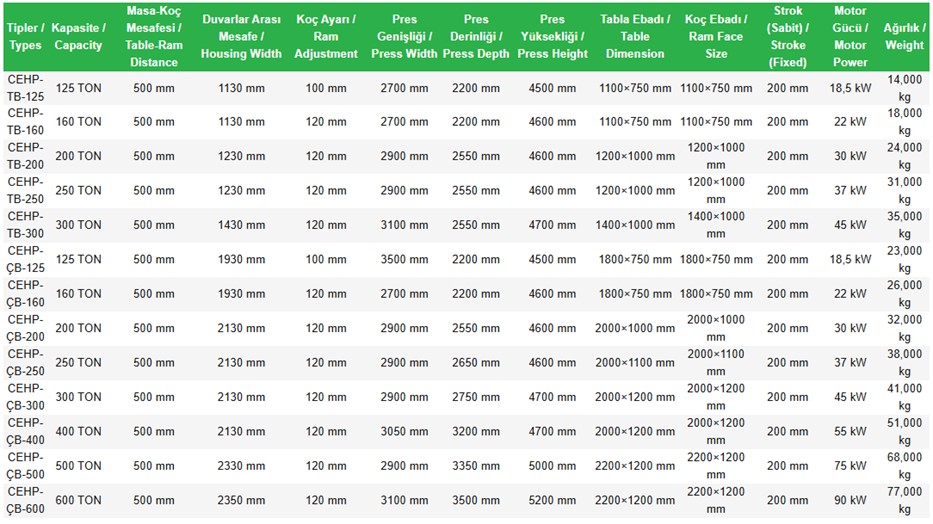

Specyfikacja techniczna
