Angle Rolls Bending Machines
Machines for cold bending of pipes and profiles with the possibility of making arcs, spirals, ribbons, twisted bars, have a hydraulic drive of the position of bending shafts (alternatively, it is possible to use a manual drive).
The machines can be equipped with a control panel, electronic display or touch screen control panel. The machines can be equipped with special rollers and additional accessories for special applications. With a fully sealed hydraulic unit and additional supports, the machines can operate in both horizontal and vertical axes.

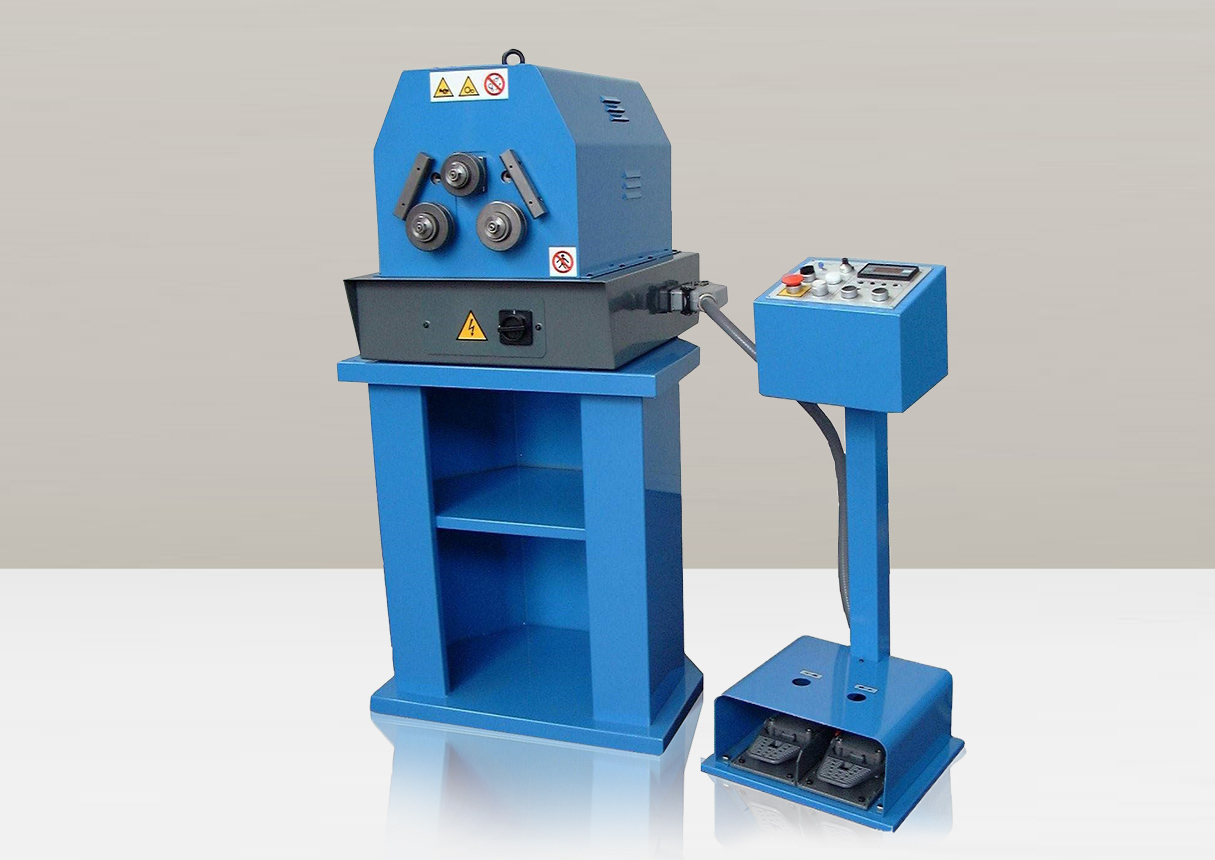

RBM 3/20 H
TECHNICAL DATA:
- Shafts Diameter mm.20 | 13/16"
- Shafts Speed 12.5 RPM
- Three lorming rolls knuried
- Approximate weight: kg 90 - lbs 200
- Packing dimension mm: B 520x600 - H 600
- Pressure of the hydraulic cylinder kg 2000 (2 t.)
STANDARD EQUIPMENT:
- Standards rolls
- Lateral Strenghteners
- Service spanners
- Instruction manual
Technical specifications

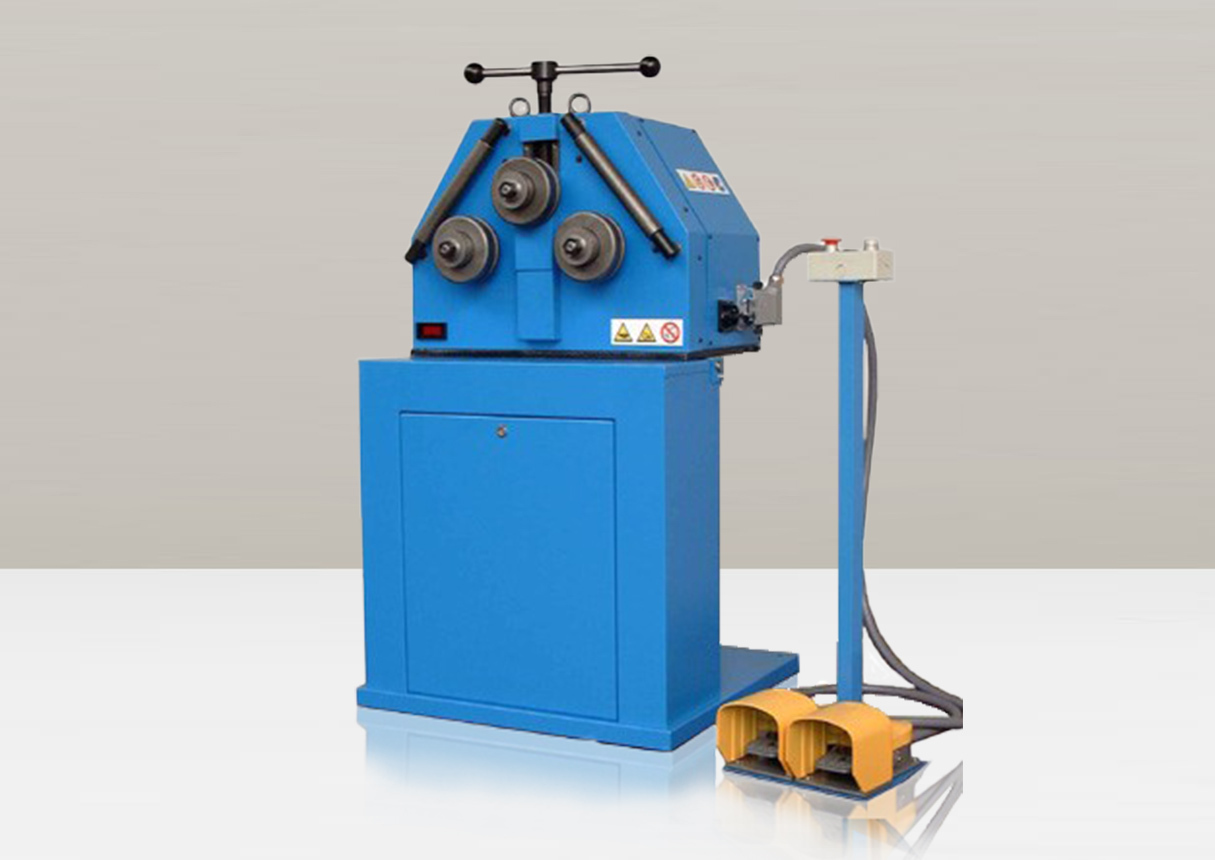

RBM 30/3 MDP
TECHNICAL DATA:
- Shafts Diameter mm.30 | 1-3/16"
- Shafts Speed 7 RPM
- Three lorming rolls knuried
- Approximate weight: kg 160 - lbs 355
- Packing dimension mm: B 650x550 - H 630
STANDARD EQUIPMENT:
- Standards rolls
- Lateral Strenghteners
- Service spanners
- Instruction manual

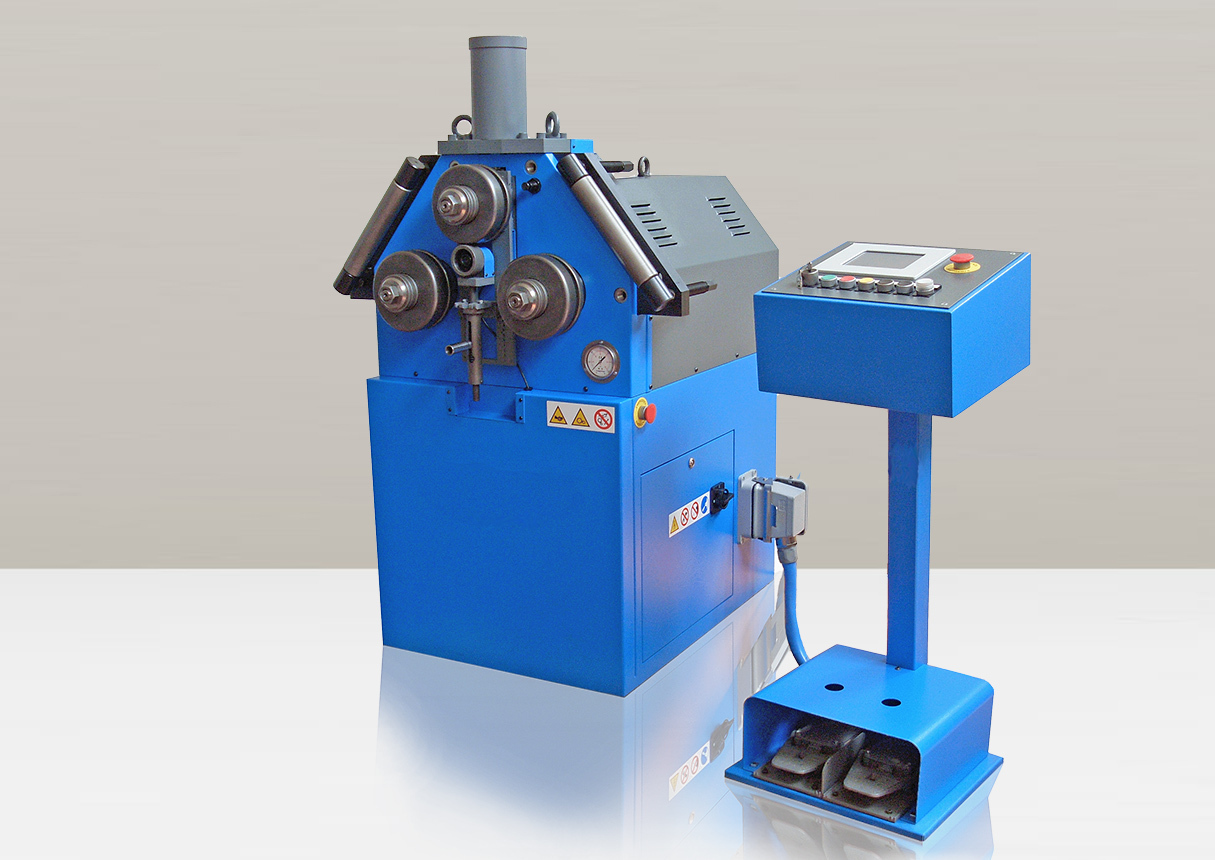

RBM 3/40 H
TECHNICAL DATA:
- Shafts Diameter mm.40 | 1-9/16"
- Shafts Speed 6 RPM
- Three lorming rolls knuried
- Approximate weight: kg 490 - lbs 1085
- Packing dimension mm: B 650x900 - H 1400
- Pressure of the hydraulic cylinder kg 8000 (8 t.)
STANDARD EQUIPMENT:
- Standards rolls
- Lateral Strenghteners
- Service spanners
- Instruction manual

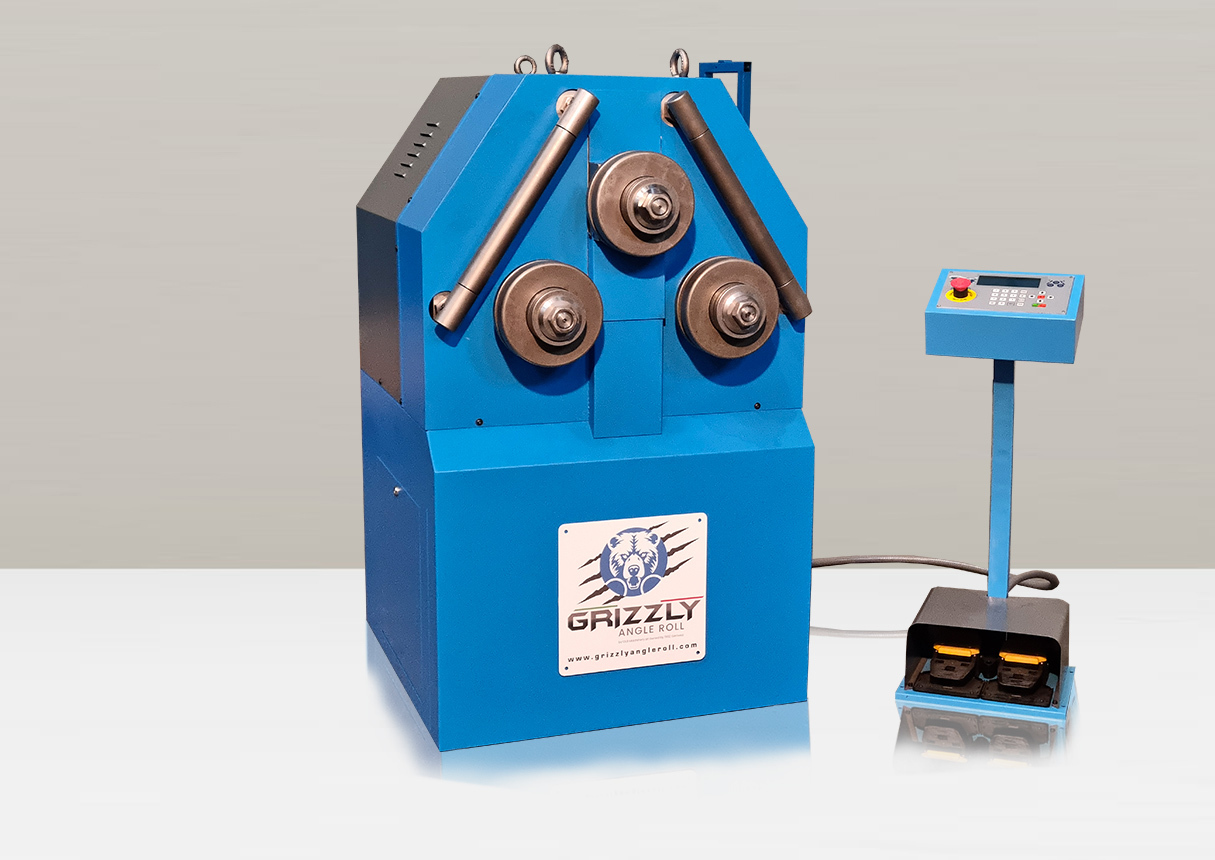

RBM 3/50 H
TECHNICAL DATA:
- Shafts Diameter mm.50 | 2"
- Shafts Speed 7 RPM
- Three lorming rolls knuried
- Approximate weight: kg 710 - lbs 1572
- Packing dimension mm: B 760x800 - H 1300
- Pressure of the hydraulic cylinder kg 13000 (13 t.)
STANDARD EQUIPMENT:
- Standards rolls
- Lateral Strenghteners
- Service spanners
- Instruction manual
RBM 3/60 H
TECHNICAL DATA:
- Shafts Diameter mm.60 | 2-3/8"
- Shafts Speed 6 RPM
- Three lorming rolls knuried
- Approximate weight: kg 1210 - lbs 2680
- Packing dimension mm: B 870x1125 - H 1620
- Pressure of the hydraulic cylinder kg 18000 (18 t.)
STANDARD EQUIPMENT:
- Standards rolls
- Lateral Strenghteners
- Service spanners
- Instruction manual
RBM 3/80 H
TECHNICAL DATA:
- Shafts Diameter mm.80 | 3-3/16"
- Shafts Speed 7 RPM
- Three lorming rolls knuried
- Approximate weight: kg 1380 - lbs 3036
- Packing dimension mm: B 980x1600 - H 1430
- Pressure of the hydraulic cylinder kg 26500 (26.5 t.)
STANDARD EQUIPMENT:
- Standards rolls
- Lateral Strenghteners
- Service spanners
- Instruction manual
RMB 3/35 H
TECHNICAL DATA:
- Shafts Diameter mm.35 | 1.38"
- Shafts Speed 12.5 RPM
- Three lorming rolls knuried
- Approximate weight: kg 350 - lbs 770
- Packing dimension mm: 900x600x1100
- Pressure of the hydraulic cylinder kg: 4000 (4T)
STANDARD EQUIPMENT:
- Standards rolls
- Lateral Strenghteners
- Service spanners
- Instruction manual
